Mini particle measuring device BQ21
£252.90

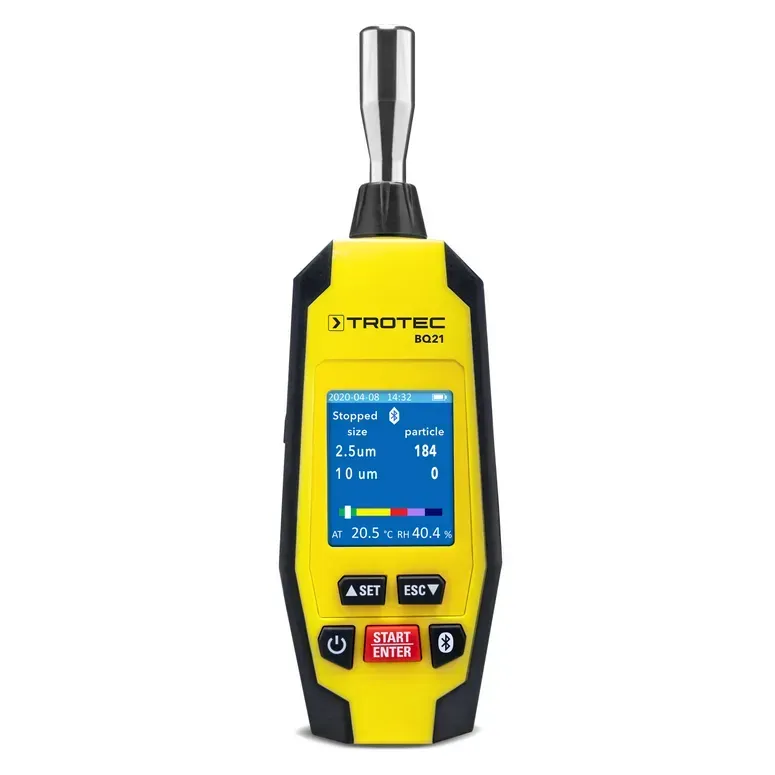

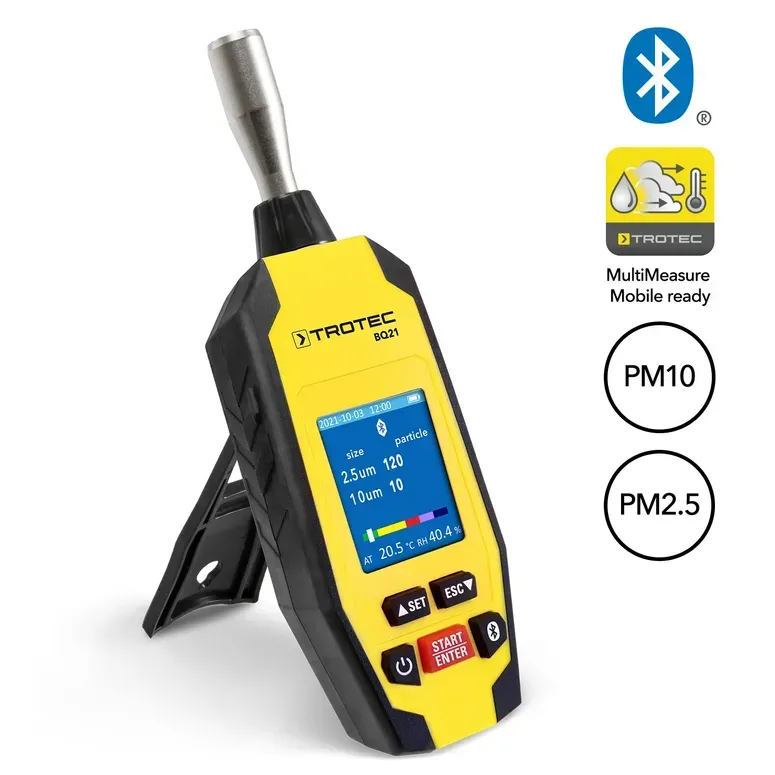

Monitor indoor air quality with confidence using the Trotec BQ21 Mini Particle Meter. Designed for professionals, this compact handheld device accurately measures airborne fine particles (PM2.5 and PM10), while also recording temperature and relative humidity to provide a complete picture of your indoor environment.
Ideal for workplaces, schools, healthcare facilities, museums, warehouses and commercial buildings, the BQ21 helps identify poor air quality caused by dust and airborne particulates. An easy-to-read 2-inch colour display shows all measurements simultaneously, with a colour-coded air quality indicator and audible alarm providing instant warning when particle levels exceed recommended limits.
With built-in Bluetooth® connectivity, measurements can be transferred directly to the free MultiMeasure Mobile app, allowing you to analyse trends, generate reports and store data for future reference. The internal memory stores up to 5,000 readings, making the BQ21 ideal for routine inspections, environmental monitoring and long-term air quality assessments.
Key Features
- Measures PM2.5 and PM10 airborne particle concentrations
- Simultaneously records air temperature and relative humidity
- Large 2-inch colour display with clear, real-time readings
- Colour-coded air quality indicator with audible alarm
- Stores up to 5,000 measurement records
- Bluetooth® connectivity for wireless data transfer
- Compatible with the free MultiMeasure Mobile app for reporting and analysis
- Lightweight, portable design with integrated stand and tripod mount
- Rechargeable lithium-ion battery for convenient field use
Ideal Applications
- Workplace air quality monitoring
- Schools, colleges and universities
- Museums, archives and heritage buildings
- Healthcare and care facilities
- Warehouses and storage areas
- Manufacturing and production environments
- HVAC inspections and building maintenance
Whether you're carrying out routine indoor air quality checks or investigating dust-related issues, the Trotec BQ21 provides fast, reliable measurements in a compact, easy-to-use instrument that helps you maintain healthier indoor environments.
SPECIFICATION
Product information
Effective area 0.54m²
Technical data
Internal data memory Flash - 5000 measurements
Display - TFT colour LCD 2.0’ 220 x 176 px
Display resolution- 0.1% r.H.
Detector type - Light scattering
Channel sizes - 2.5 µm, 10 µm
Energy
Number of batteries per device - 1
Emission
Number of channels - 2
Light source - laser class 3R, wavelength 780 nm, 1.5 – 3 mW
Power supply
1 x 7.2 V Li-ion battery integrated
Internal battery (Li-ion)
Particle mass conversion
10 µm
2.5 µm
Measurement specifications
Particle mass concentration -
- Range - 0 µg/m³ - 2000 µg/m³
- Resolution - 1 µg/m³
Air temperature [°C]
- Range - 0 °C - 50 °C
- Resolution - 0,1 °C
- Accuracy - 1 °C
Relative Humidity
- Range - 0% - 100%
- Resolution - 0,1 °C
Accuracy - ±5 % (bei 0 % r.F. bis 20 % r.F.)
±3,5 % (bei 20 % r.F. bis 80 % r.F.)
±5 % (bei 80 % r.F. bis 100 % r.F.)
