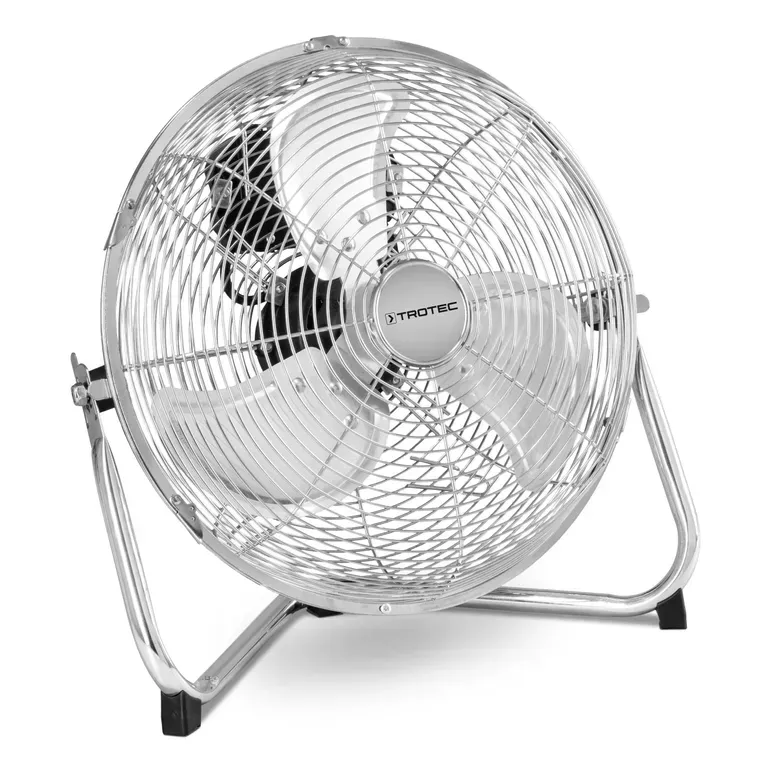

Floor fan TVM 12

$64.95

The floor fan TVM 12 is made entirely of metal, from its chrome-look blades to the equally chrome-plated stand bracket – even the motor is equipped with a copper coil. This not only looks elegant, but also extends the service life of the entire device.


With its cool chrome design, the TVM 12 is well-placed in the home living room and makes an excellent impression in the office thanks to its quiet operation. The elegant wind machine provides the right breeze for photo shoots, film sets, or filming. Incidentally, thanks to the optionally available wall and ceiling mount, use in restaurants is also conceivable. In addition, the retro device, with its 37 watts of power and a blade diameter of 12 inches (approx. 30 cm), generates considerable coolness at any workplace – from a gentle breeze to a strong wind. Whether for ventilation, wind generation, wind cooling, or drying – the TVM 12 is versatile.


  • 37 watts of power
  • 3 speed levels
  • Adjustable tilt angle of the fan head by up to 100°
  • Front and rear protected metal grille in modern chrome look
  • Fan blade diameter 30 cm
  • Stable and non-slip stand for tip-proof stability
  • Long service life thanks to the copper coil in the motor
  • Quiet operation
  • Integrated cable winding
  • Practical carrying handle
  • Unique price-performance ratio

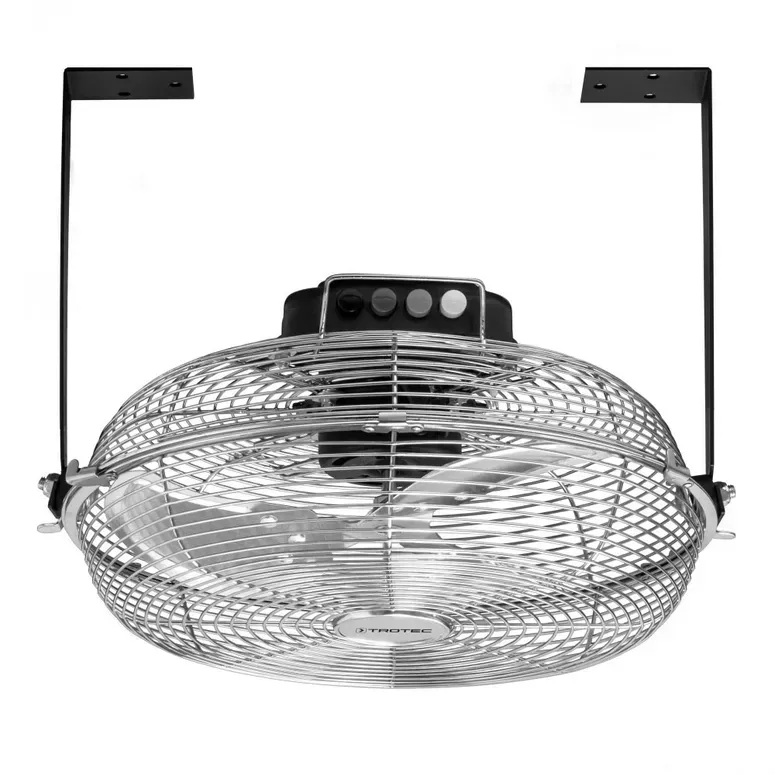

  • Optionally available: Wall and ceiling mount for ventilating hard-to-reach areas
  • SPECIFICATION

    Master Data

    Length without packaging [mm] - 170 mm

    Length with packaging [mm]- 180 mm

    Width without packaging [mm] - 390 mm

    Width with packaging [mm] - 405 mm

    Height without packaging [mm] - 380 mm

    Height with packaging [mm] - 390 mm

    Weight without packaging [kg] - 2.5 kg

    Weight including packaging [kg] - 3 kg


    Other dimensions

    Base diameter [mm] - 16

    Fan cover diameter [mm] - 360

    Fan wing diameter [cm] - 30


    Technical data

    Fan stages - 3

    Air outlet velocity [m/s] - 3

    Number of fan blades - 3

    Adjustable angle of inclination [°] - 120


    Energy

    Cable length [m] - 1.6

    Power connection and frequency - 220 - 240 V, 50 Hz

    Power consumption - 42 W

    Recommended fuse protection [A] - 10 A


    Fan type

    axial


    Functions and features

    Adjustable direction/tilt

    Auto restart function


    Mobility

    Cable winder

    Carry/transport handle(s)

    Foot


    Connector plug

    Designation


    IP type of protection

    Label

    Protection towards water


    Air Volume [m3/h]

    2514


    Speed revolutions

    Level - Speed/revolutions [rpm]

    • high - 1250
    • medium - 1100
    • low - 950


    Sound level

    Distance [m] - Sound level [dB(A)]

    • 1 - 56
